Brand: Allstar Performance
Manufacturer's Part Number: ALL68509
Part Type: Ring and Pinion Gear Installation Kits
Product Line: Allstar Performance Ring and Pinion Installation Kits
Automotive Fittings Part Number: AAF-ALL68509
UPC: 848238036732
Differential Case Design Type: Ford 9 in.
Ring Gear Bolts: 10
Pinion Spline Count: 28
Carrier Bearing Diameter (in.): 3.062 in.
Cover Gasket Included: Yes
Pinion Shims Included: Yes
Carrier Shims Included: Yes
Crush Sleeve Included: No
Pinion Seal Included: Yes
Pinion Nut Included: Yes
Ring Gear Bolts Included: Yes
Head Bearing Included: Yes
Tail Bearing Included: Yes
Carrier Bearings Included: Yes
Axle Seals Included: No
Axle Bearings Included: No
Quantity: Sold as a kit.
Notes: Comes with solid pinion spacer. Comes with 3.062 in. carrier bearings.
Description:
Allstar Performance ring and pinion installation kits contain all of the hard-to-find individual parts for a quick, trouble-free install. To ensure precise fitment, order the kit designed for your specific axle model.

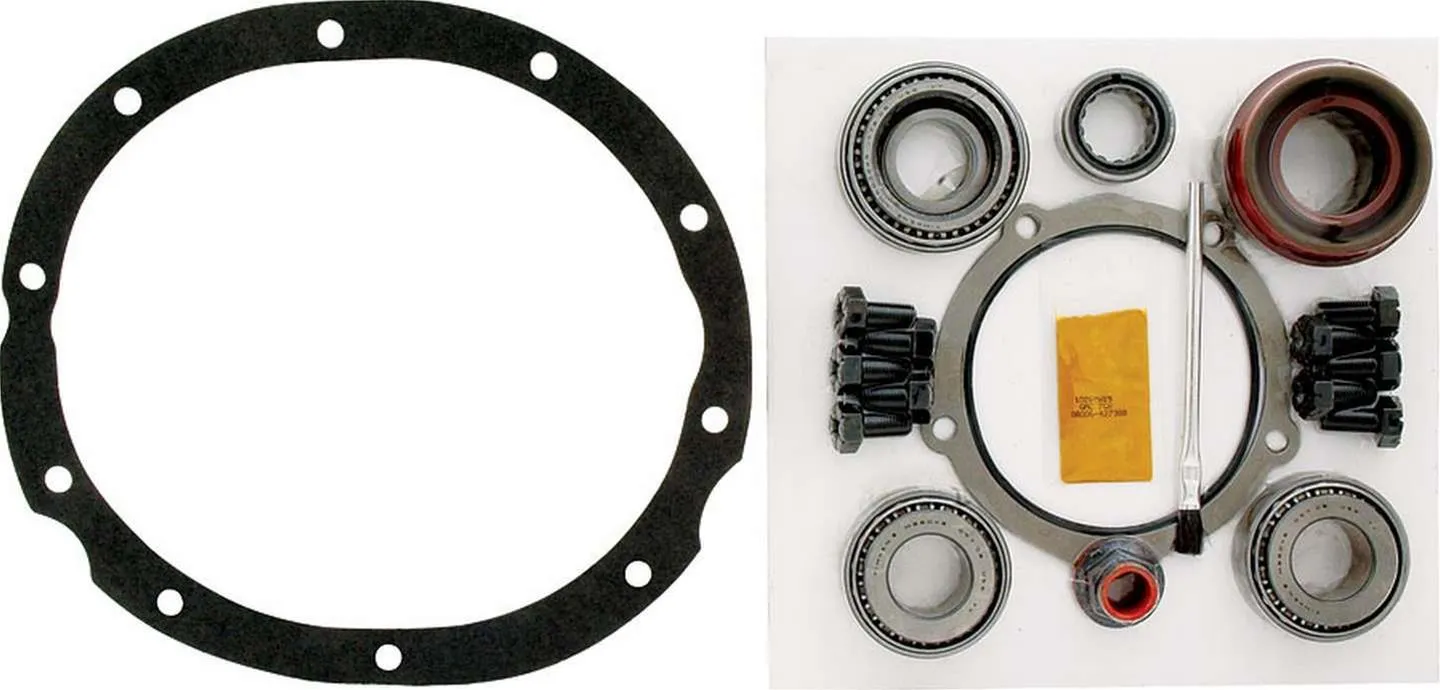

Kits include:

* Pinion and side (carrier) bearings
* Pinion seal
* Pinion depth shims
* Adjustable side (carrier) shims
* Crush sleeve (spacer)
* Pinion nut
* 1 oz. tube of silicone or gasket
* Gear marking compound
* Ring gear bolts
